Technical-specification
Gap Inch
83"(21mm)
Loop Open / Closed
Closed
Reed Form
Normally Open
Max. Contact Rating
10W
Max. Initial Contact Resistance
100mΩ
Max. Switching Voltage
AC 110/DC 100 V
Max. Switching Current
0.5A
Contact Size
1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size
1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Wire
12"(305mm) 4 cores jacket wire
Leads
Longer leads available
Operation Temperature
-40°C to +60°C
Type
Grade 3 Compliant

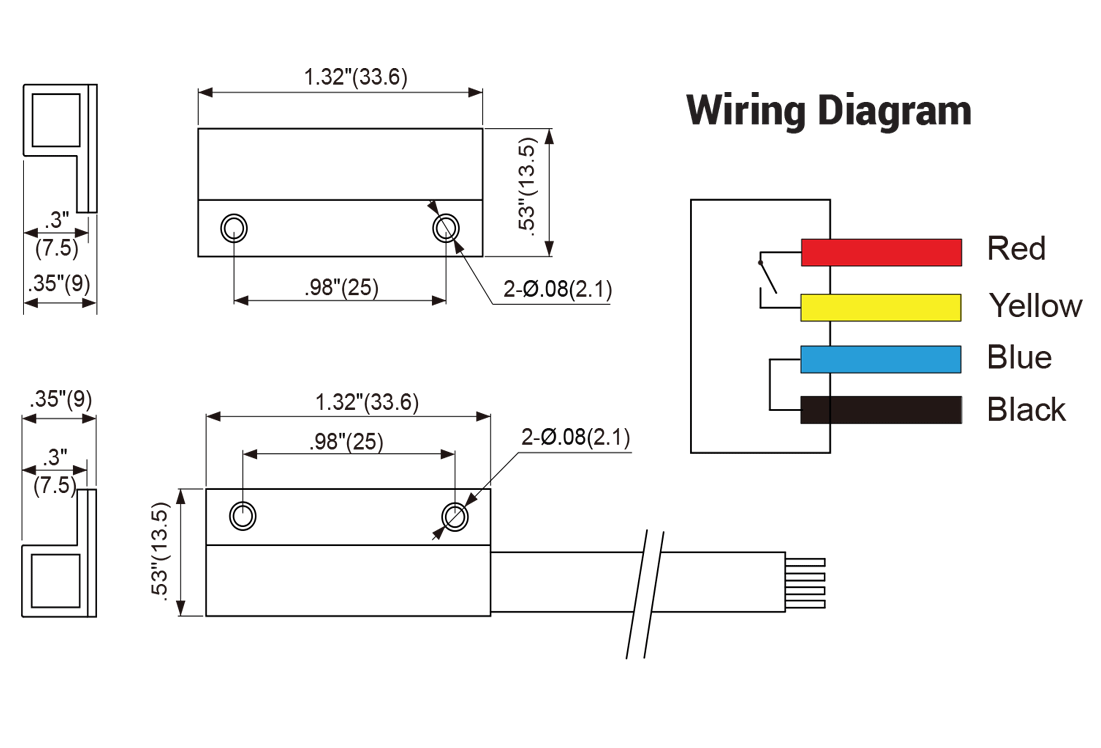

Dimensions
